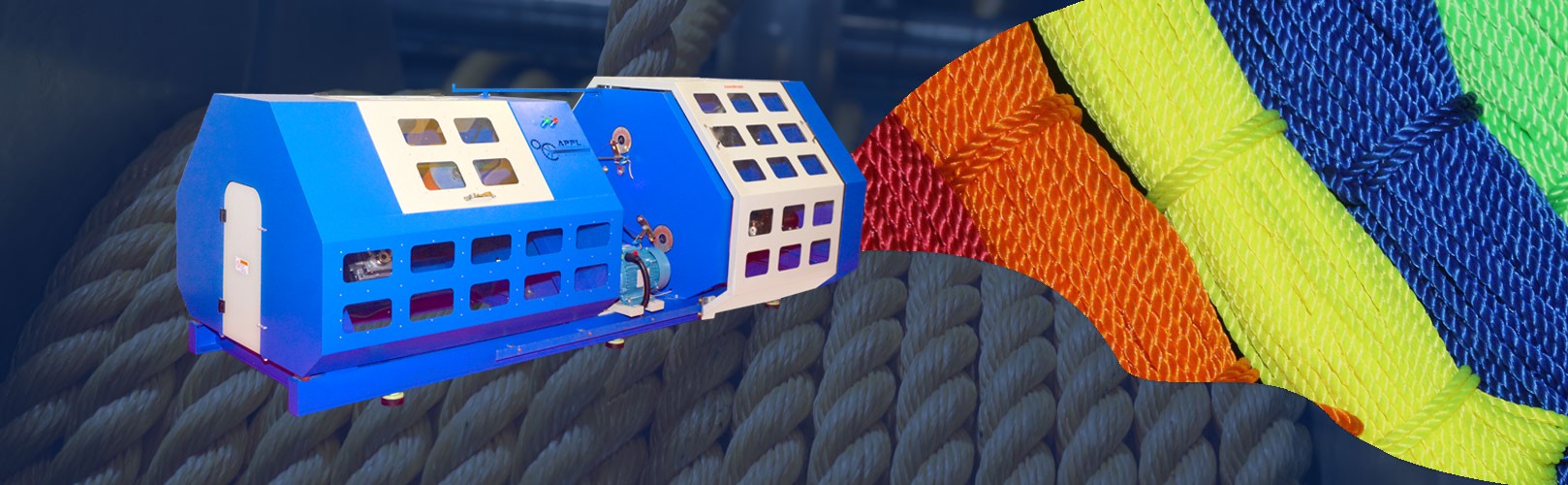

Rope Making Machine 2mm to 6mm
AVAILABLE MODELS
| Model No. | In Standard | In PLC Based | No Of Ply | Rope Size | No. of Bobbin |
|---|---|---|---|---|---|
| APPL/ R-2 A3 | Yes | N/A | 3 | 2MM TO 6MM | 3 X 1 = 3 |
| APPL/R-2 D4 | Yes | N/A | 4 | 2MM TO 6MM | 4 X 1 = 4 |
| APPL/26/3/6 | Yes | N/A | 3 | 2MM TO 6MM | 3 X 2 = 6 |
| APPL/ 26/4/8 | Yes | N/A | 4 | 2MM TO 6MM | 4 X 2 = 8 |
| APPL/ 26/3/9 | Yes | N/A | 3 | 2MM TO 6MM | 3 X 3 = 9 |
| APPL/26/4/12 | Yes | N/A | 4 | 2MM TO 6MM | 4 X 3 = 12 |
SPECIFICATION
| Take up Capacity | 11 Kgs |
|---|---|
| Pay of Package Size | (250 mm Dia x 250 mm Tra x 38/24 mm Hole) |
| Twist Range | 40-135 |
| Rope Lay | Z-Type |
| Twist Per Minute | Twice the Flyer |
| Rope Flyer RPM | 1150 |
| Strand Flyer RPM | 2100 |
| Rope Range | 2 mm to 6mm |
| Model Type | Mechanical |
Key Features
- Best Rope Finishing
- Excellent Quality of Twist
- Specially Aerodynamic Design of Machine
- Less Noisy
- Less Power Consumption
- Easy to Operate.
- Fully Electro-Balanced & Vibration Free Model
- PP, HDPE, PET, Nylon, Polyester, Cotton, FDY, POY, Resham ETC Can be Process
- Maximum Output / Production
- Auto Stop After Yarn Breakage to Control Wastage
- Power Transmission by Belts
- Adjustable Twist for Strand
- Take Up Output On M.S Bobbin
- No. of Bobbin
- 3 X 1 = 3
- 4 X 1 = 4
