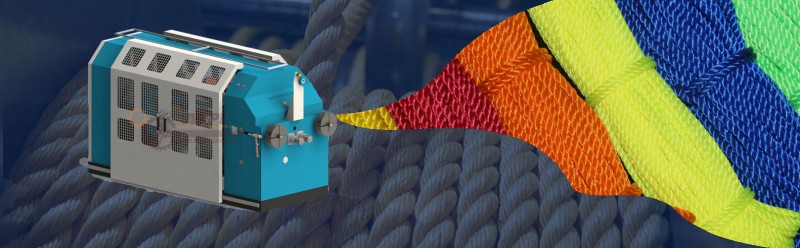

Endless Rope Making Machine 8mm to 16mm
AVAILABLE MODELS
| Model No. | In Standard | In PLC Based | No Of Ply | Rope Size | No. of Bobbin |
|---|---|---|---|---|---|
| APPL/OUT-3/816/60 | Yes | Yes | 3 | 8mm to 16mm | 3 X 20 = 60 |
| APPL/OUT-4/816/80 | Yes | Yes | 4 | 8mm to 16mm | 3 X 20 = 60 |
SPECIFICATION
| Model Type | Available in Mechanical and PLC Based |
|---|---|
| Rope Range | 8mm to 16mm |
| Strand Flyer RPM | 700 |
| Rope Flyer RPM | 300 |
| Twist Per Minute | Twice the Flyer |
| Rope Lay | Z-Type |
| Twist Range | 15-40 TPM |
| Pay of Package Size | (250 mm Dia x 350 mm Tra x 38/24 mm Hole) |
| Take up Capacity | Infinity |
Key Features
- User Friendly Touch Screen Display with PLC-HMI Control.
- All Parameter are Shown on Display.
- User Can set Length in Meter, Foot & Yard.
- Inbuilt Denier and Twisting Calculation.
- Safety Door Alarm Indication.
- Machine Lubrication and Oiling Warning Indication.
- A.C Drive Fault Alarm Indication.
- 100 Program Memory Storage Facility.
- WIFI Connectivity With Online Monitoring And Service System.
- Production Data ( Daily, Weekly, Monthly & Yearly) ( Directly save in Excel Format).
- Inbuilt Life Time Production History.
- Direct Coiling Head Attachment.
- Digital Printer Attachment
- Electrical Wire Hoist For Removing of Final Filled Bobbin.
