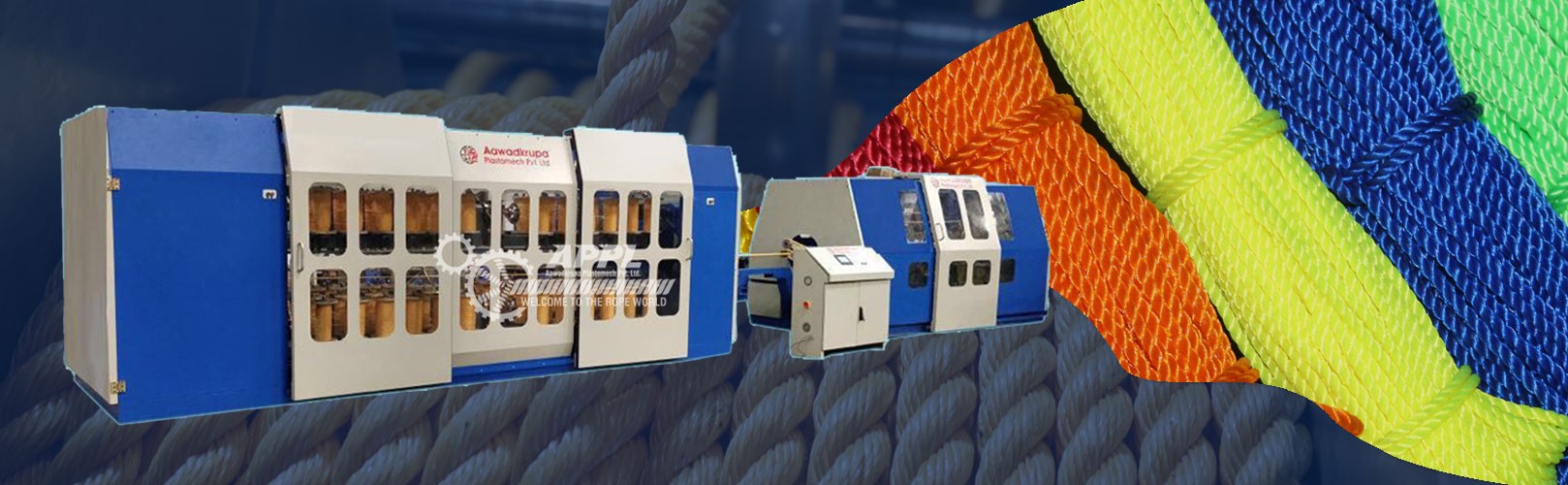

Rope Making Machine 25mm to 55mm
AVAILABLE MODELS
| Model No. | In Standard | In PLC Based | No Of Ply | Rope Size | No. of Bobbin |
|---|---|---|---|---|---|
| APPL/ 2555 / 3 / 300 | N/A | Yes | 3 | 25MM TO 44MM | 3 X 100= 300 |
| APPL/ 2555 / 4/ 352 | N/A | Yes | 4 | 25MM TO 44MM | 4 X 88 = 352 |
SPECIFICATION
| Model Type | Mechanical & PLC |
|---|---|
| Rope Range | 25mm to 55mm |
| Strand Flyer RPM | 250 |
| Rope Flyer RPM | 125 |
| Twist Per Minute | Twice the Flyer |
| Rope Lay | Z-Type |
| Twist Range | 2-12 |
| Pay of Package Size | (250 mm Dia x 250 mm Tra x 38/24 mm Hole) |
| Take up Capacity | 370 Kgs |
Key Features
- User Friendly Touch Screen Display with PLC Control.
- All Parameter are Shown on Display.
- User Can set Length in Meter, Foot & Yard.
- Inbuilt Denier and Twisting Calculation.
- Safety Door Alarm Indication.
- Machine Lubrication and Oiling Warning Indication.
- A.C Drive Fault Alarm Indication.
- 100 Program Memory Storage Facility.
- WIFI Connectivity With Online Monitoring And Service System.
- Production Data ( Daily, Weekly, Monthly & Yearly) ( Directly save in Excel Format).
- Inbuilt Life Time Production History.
- Direct Coiling Head Attachment.
- Digital Printer Attachment.
- Electrical Wire Hoist For Removing of Final Filled Bobbin.
